Aluminum windings take up a large amount of the space in air-cooled transformers. Therefore, for economical and low-cost production, we use transformer aluminum strips.
Transformers with rated powers up to 4 MVA that are dry-type or oil-immersed use aluminum windings.

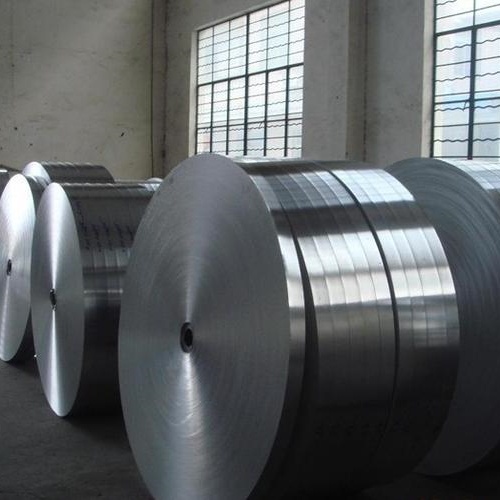

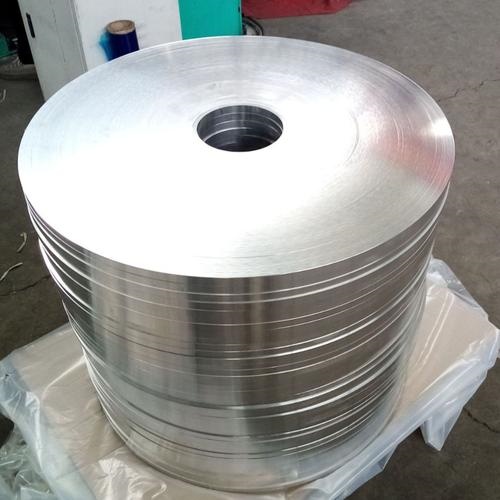

The dry type and oil-immersed transformer windings are the primary applications for aluminum foil strips for transformers, also known as aluminum transformer strips foils.
Transformer aluminum foil strips come in thicknesses ranging from 0.2 to 3.0 mm and widths ranging from 30 to 1600 mm.
Paper, kraft paper, polyester film, or glass cloth are examples of insulating materials over which the coils are wound.
Aluminum foil strips for transformers are vital components in the transformer manufacturing process because of their high conductivity, excellent resistance to corrosion, and attractive appearance.
GNEE Aluminum is guaranteed to have the aluminum coil strips in any size you require with a tight tolerance!
| 1050 O Aluminum Foils Strips Chemical Composition (%) | |||||||||
| Element | Al | Si | Fe | Mg | Zn | Mn | Ti | Cu | V |
| Standard Value | ≥99.5 | 0.0431 | 0.203 | 0.0013 | 0.0093 | 0.0104 | 0.02 | 0.0022 | 0.0039 |
| 1070 O Aluminum Foils Strips Chemical Composition (%) | |||||||||
| Element | Al | Si | Fe | Mg | Zn | Mn | Ti | Cu | V |
| Standard Value | ≥99.7 | 0.0431 | 0.203 | 0.0013 | 0.0093 | 0.0104 | 0.02 | 0.0022 | 0.0039 |
| 1350 O Aluminum Foils Strips Chemical Composition (%) | |||||||||
| Element | Al | Si | Fe | Mg | Zn | Mn | Ti | Cu | V |
| Standard Value | ≥99.5 | 0.0431 | 0.203 | 0.0013 | 0.0093 | 0.0104 | 0.02 | 0.0022 | 0.0039 |
| Product Name | Aluminum foils strips for transformers |
| Grades | 1050, 1350, 1060, 1070 |
| Temper | O |
| Thickness | 0.2 mm-3.5 mm |
| Width | 10mm-1600mm |
| Edge | Slit/Round |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter |
Ø 150 mm, Ø 300 mm, Ø 400 mm, Ø 500 mm paper core, special internal diameter core and without paper core on special request |
| Surface Treatment | The strip has a smooth surface, free from scratches and impurities |
| Electrical Conductivity | Transformer windings made of 1050 O in annealed condition are guaranteed to be better than 60 % ACS. Transformer windings made of 1060 O in annealed condition are guaranteed to be better than 61.5 % ACS. Transformer windings made of 1070 O in annealed condition are guaranteed to be better than 62.7 % ACS. Transformer windings made of 1350 O in annealed condition are guaranteed to be better than 62 % ACS. |
| Applications | Transformer winding |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 7-10 working days |
| MOQ | 5 Tons |
| Sample | The sample of Aluminium foil strip is available |
| Remark | Aluminium foil strip can be customized |
