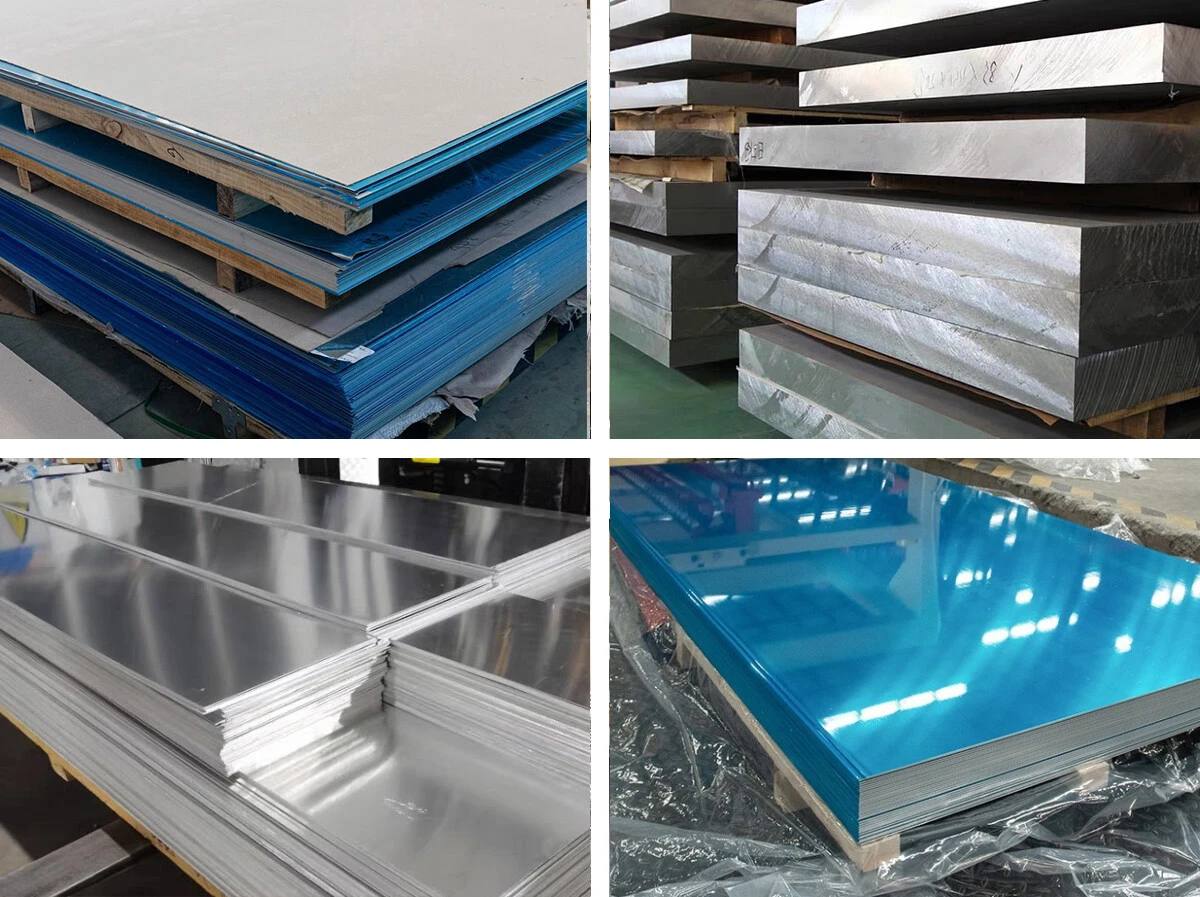

Aluminum sheet is a sheet made of aluminum alloy, containing aluminum and various alloy elements. It is light in weight, low in density, and easy to transport and install, and it has significant advantages in aerospace and other fields. It is tough and strong, can withstand certain pressure and impact, and can be used for building structure support. It has good electrical and thermal conductivity and can be used as a conductive material in the field of electronics and electrical. The surface is easy to process, and through processes such as anodizing and spraying, it can obtain rich colors and good anti-corrosion properties and is used for decoration. It also has excellent corrosion resistance and can exist stably in humid, acidic, and alkaline environments, such as marine equipment and chemical containers.
| Product | 1100/2024/3003/5052/6061/7075 Aluminum Alloy Plate with Customized Requirements |
| Thickness | 0.2mm-500mm |
| Width | 20 mm-3000 mm |
| Length | As customers’ requirements |
| Temper | temper H, temper O, temper T |
| Features | Our company mainly deals with 1, 2, 3, 5, and 6 series aluminum sheets/coils. |
| For different customers’ applications. | |
| Application | 1) building and construction material |
| 2) decoration | |
| 3) curtain wall | |
| 4) Shelter | |
| 5) oil tank | |
| 6) mould | |
| Surface | Every pieces could covered with PE film or Paper |
| Packing | Export standard wooden pallets (as per requirements). |
| Payment Terms | 30% T/T in advance as deposit, 70% balance against the B/L copy or 100% irrevocable L/C at sight |
| Minimum Order Quantity | 5-12 tons pre size |
| Delivery time | 30 days after receiving L/C or deposit |
| Loading Port | any port in China |
| Remark | Specific requirement of alloy grade, temper, or specification can be discussed at your request |
| Mechanical Property | ||||||||
| ALUMINUM | Grade | Normal | Temper | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation % | Brinell Hardness HB |
|
| Plate | Bar | |||||||
| ALLOY （1XXX） |
1050 | O, H112, H | O | 78 | 34 | 40 | – | 20 |
| 1060 | O, H112, H | O | 70 | 30 | 43 | – | 19 | |
| Al-Cu (2XXX) |
2019 | O, T3, T4, T6, T8 | T851 | 450 | 350 | 10 | – | – |
| 2024 | O, T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) |
3003 | O, H112, H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O, H112, H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) |
4032 | O, T6, T62 | T6 | 380 | 315 | – | 9 | 120 |
| Al-Mg (5XXX) |
5052 | O, H112, H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O, H112, H | O | 290 | 145 | – | 20 | – | |
| Al-Mg-Si (6XXX) |
6061 | O, T4, T6, T8 | T6 | 310 | 270 | 12 | 15 | 95 |
| 6063 | O, T1, T5, T6, T8 | T5 | 185 | 145 | 12 | – | 60 | |
| Al-Zn-Mg (7XXX) |
7003 | T5 | T5 | 315 | 255 | 15 | – | 85 |
| 7075 | O, T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
