2A12 aluminum sheet
2A12 or 2A11 aluminium sheet is a 2 series Al-Cu alloy, which mainly contains the alloy component Cu, and belongs to the heat-treated alloy sheet.
Products Introduction
Our Service
2A12 or 2A11 aluminium sheet is a 2 series Al-Cu alloy, which mainly contains the alloy component Cu, and belongs to the heat-treated alloy sheet. Therefore, the 2A12 aluminium alloy strengthened by heat treatment has high strength. And the corrosion resistance is not high, need to carry out surface treatment or aluminium coating to improve its corrosion resistance. Now, 2A12 aluminium sheet is mainly used for making various parts and components with high load (but not including stamping parts and forgings).
Products Introduction

Chemical and Physical Properties

Grade 2A12 Aluminum Sheet
Chemical Composition(%) Si: ≤0.50
Cu: 3.8~4.9
Mg: 1.2~1.8
Zn: ≤0.30
Mn: 0.30~0.9
Ti: ≤0.15
Ni: ≤0.10
Fe: 0.000~0.500
Fe+Ni: 0.000~0.500
Mechanical Property Yield Strength(MPa): ≥325
Tensile Strength(MPa): ≥472
Elongation(%): ≥10
Temper: F, O, T3, T4, T351, H112

The Features of 2A12 Aluminium Sheet
1. High Fatigue Strength. 2A12 aluminum sheet can be subjected to an almost infinite number of alternating loads without failure.

2. Excellent Machinability. After cold hardening, the machinability of the 2A12 aluminum sheet is good.

3. Mechanical Properties. 2A12 aluminum alloy tensile strength σb (MPa)≥410, conditional yield strength σ0.2 (MPa)≥265, elongation δ5 (%)≥12.

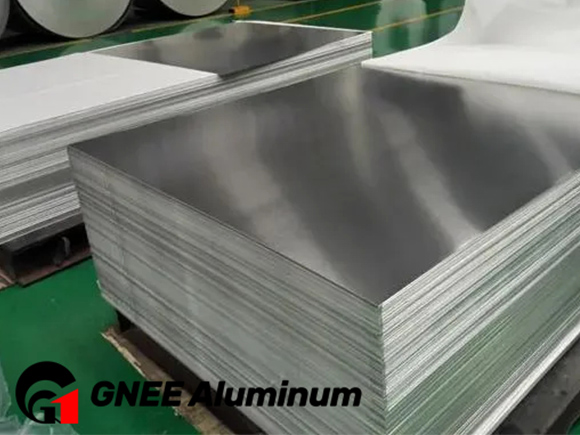

2A12 Aluminium Sheet

Applications of 2A12 Aluminium Sheet
In general applications, 2A12 aluminum sheet is mainly used in molds, traffic vehicles, compressors, rivets, truck hubs, screw elements and other structural parts.

In aircraft manufacturing, 2A12 aluminum sheet is mainly used for skeleton parts, skin, diaphragm, wing ribs, wing spars, rivets and other parts working below 150 ℃.

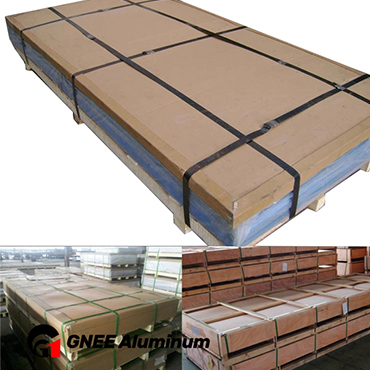

Packing Detail of 2A12 Aluminium Sheet
The standard export packaging, plastic film or craft paper covered at customers’ requirements. Wooden case or wooden pallet is adopted to protect products from damage during the delivery.

Which is focused on the deep processing of Aluminum plate strip and foil.
GNEE Aluminium company Was Founded in 2008
Our Service
Our Service

GNEE Aluminum provides you with first-rate quality, attractive and reasonable prices. Excellent surface quality and package, fast delivery. If you are looking for a 2A12 aluminium sheet supplier in China, GNEE is your best choice. We promise you the best price and excellent service. For more detailed information, please feel free to contact us directly.
